40 feet high bed trailer truck uses Q460C high-strength steel to manufacture trailers. The yield strength of Q460C steel is ≥620MPa, which is more durable and stronger than ordinary steel. Its load capacity is 5 times that of trailers made of Q345 steel. It is mainly used to transport large machinery such as excavators, and is very suitable for transportation in poor road conditions in Africa.
40 feet High Bed Trailer Truck Dimensions for Sale In Uganda Kampala
40 feet High Bed Trailer Truck Dimensions for Sale In Uganda Kampala
40 feet High Bed Trailer Truck Dimensions for Sale In Uganda Kampala
40 feet High Bed Trailer Truck Dimensions for Sale In Uganda Kampala
Loading capacity: 60 ton
Overall dimension: 13000mm * 3000mm *3750mm
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Landing gear: JOST brand
Ramp: Spring Ramp
Kingpin: JOST brand 2.0 or 3.5 inch
Valve: WABCO valve
Light: LED light

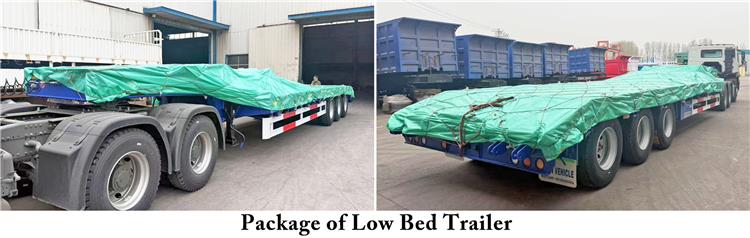

Use strapping or chains to securely secure all loose parts of the 40 feet high bed trailer truck, including ramps (if applicable). A thick layer of wax will be sprayed on the 40 feet high bed trailer dimensions to reduce the erosion of the low bed trailer by seawater during transportation.

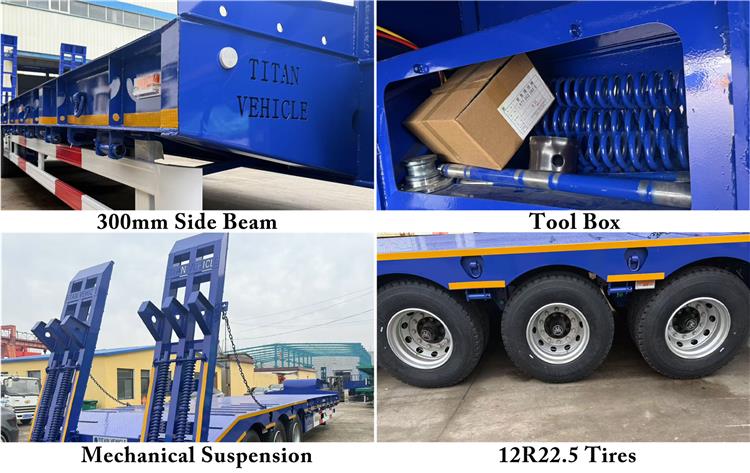

The side beams of 40 feet high bed trailer truck are all welded with three-in-one high-strength strip steel, with a strip width of 140mm and a side beam height of 300mm
40 feet high bed trailer dimensions are all trapezoidal scales, and 40 feet high bed trailer truck uses G-type scales (higher strength than ordinary C-type scales). The beams are reinforced with vertical plates at the weld of the trapezoidal scales to prevent the vertical plates from being deformed due to downward pressure on both sides.
The middle scale of 40 feet high bed trailer dimensions is parallel to the side scales to prevent the side beams from being pressed down and causing the beams to deform left and right.

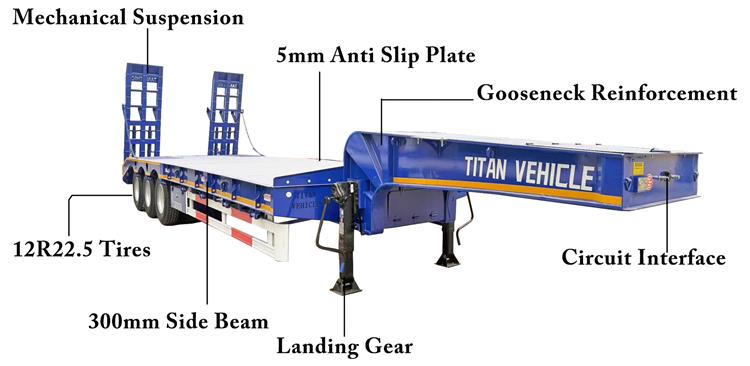

The large gooseneck of 40 feet high bed trailer truck adopts a downward-pressing forehead to prevent the head from tilting under heavy load. It is conducive to the front of the vehicle climbing. 40 feet high bed trailer dimensions The rear three-axle double web is reinforced, and the front suspension bracket is reinforced.

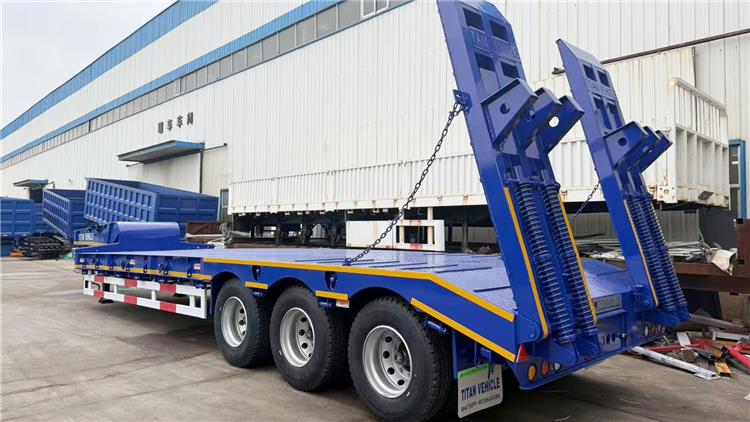

The ladder of 40 feet high bed trailer truck adopts four-in-one high-strength plate, which is high in strength, durable and non-deformed.

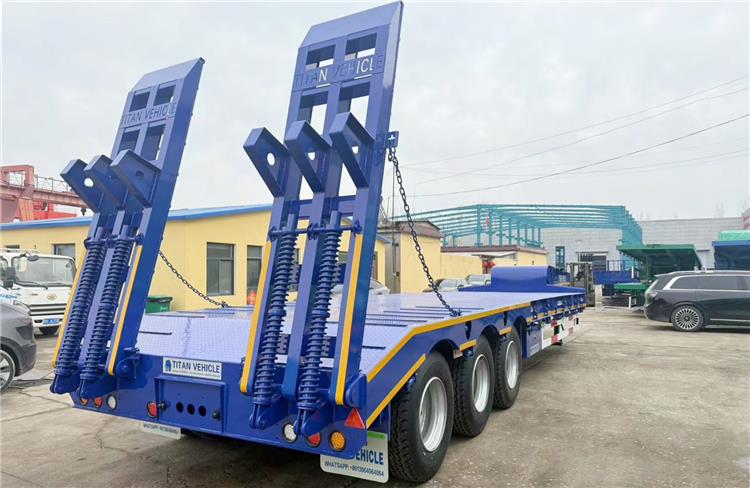

40 feet high bed trailer dimensions adopts high elastic double spring ladder, which can be easily lifted by ordinary people with one hand, making it more convenient to operate.
The side beams at the low-profile tires of 40 feet high bed trailer truck all adopt double-layer side beam design, which is more beautiful and durable.
There is a tool box above and below the forehead of 40 feet high bed trailer dimensions, which is particularly strong and can be used to store heavy tools such as jacks and chains.
The suspension of 40 feet high bed trailer truck is thickened to better adapt to poor road conditions.
40 feet high bed trailer dimensions adopts one-piece cast adjustable pull rod to prevent breakage.
The rear of 40 feet high bed trailer truck adds foldable auxiliary outriggers, which plays an auxiliary support and stability role when transporting large equipment such as excavators, which not only prevents damage to the rear of the vehicle, but also avoids accidents such as slipping of the transported equipment.
40 feet high bed trailer dimensions adds I-beam support, especially using box-type trapezoidal scales at key stress points, which greatly improves the vehicle's carrying capacity.
