CIMC 13m Tri Axle Trailer

CIMC Tri Axle Trailer Price: 12500USD

CIMC china trailers tri axle trailer is a large truck for transporting goods, mainly used for transporting containers. CIMC china trailers tri axle trailer is characterized by large transport capacity and efficient loading and unloading speed.

CIMC China Trailers | 13m Tri Axle Trailer for Sale In Entebbe, Uganda

CIMC China Trailers | 13m Tri Axle Trailer for Sale In Entebbe, Uganda

CIMC china trailers for sale in uganda uses polyurethane paint to paint overall the trailer.Polyurethane paint is not only beautiful in color, but also strong in adhesion.

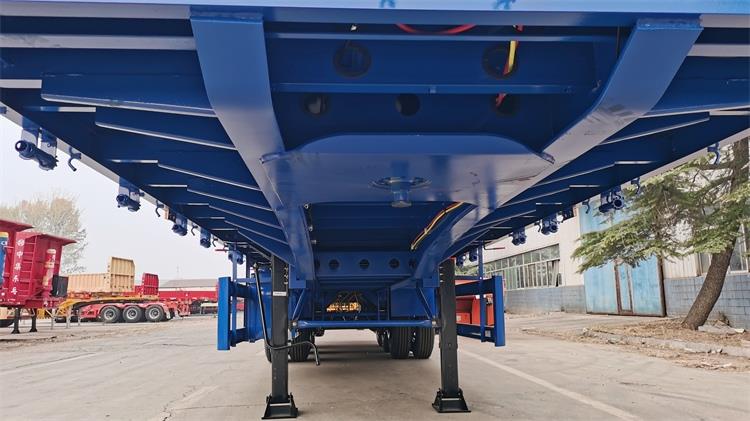

CIMC china trailers tri axle trailer for sale In Entebbe, Uganda bottom plate of the gooseneck part also be reinforced by double plate.

CIMC china trailers use 160 mm  steel to produce the side beam,which makes the trailer more strength.

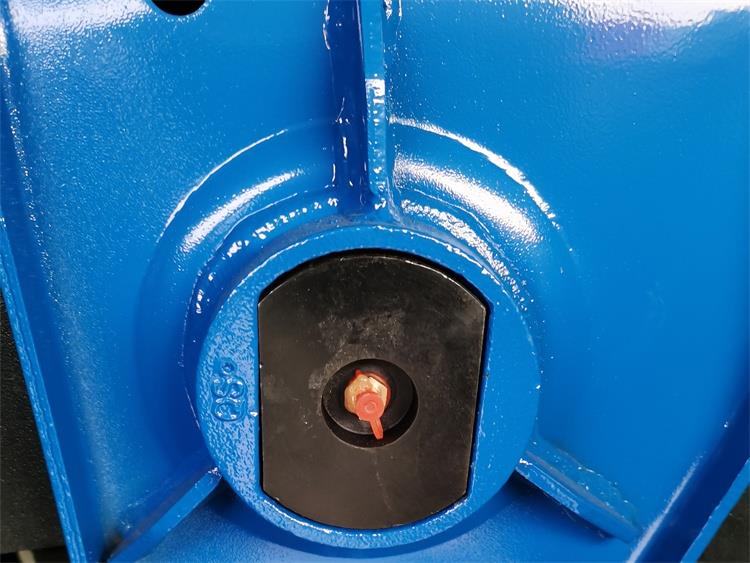

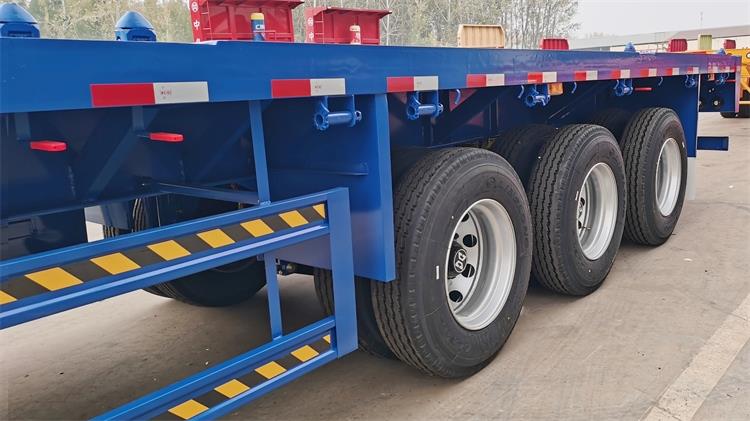

CIMC tri axle trailer for sale in uganda adopts heavy duty mechanical suspension to produce the trailer,the thickness of the suspension is 8 mm and the diameter of the kingpin is 70 mm,which greatly improve the stability of the trailer.

Tri Axle Trailer Video

Specification CIMC China Trailers:

Overall L*W*H: 13000*2500*1530mm

Payload: <80 tons, customized

Application: Transport 20/40ft Container

Axles: 16tons Fuwa/BPW/CIMC brands

Tire: 12.00R20/11.00R20/12R22.5/385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical Suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve
