The main beam of CIMC Sugar cane trailer in uganda is made of Q345 high strength steel, which has more loading capacity. CIMC Sugar cane trailer in uganda manufacturer reinforces the main beam.
CIMC Livestock Sugar Cane Trailer for Sale Near Me Uganda
CIMC Livestock Sugar Cane Trailer for Sale Near Me Uganda

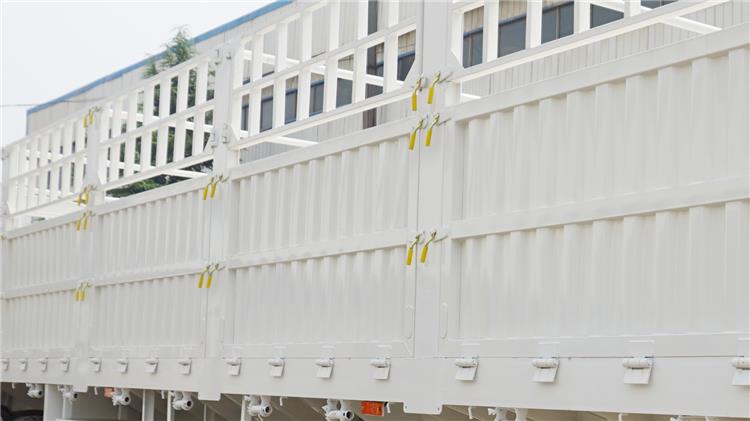

Sugar cane trailer in uganda uses 5*5 cm tube to produce the fence and 1.5 mm thick high strength steel board to produce the sidewall.

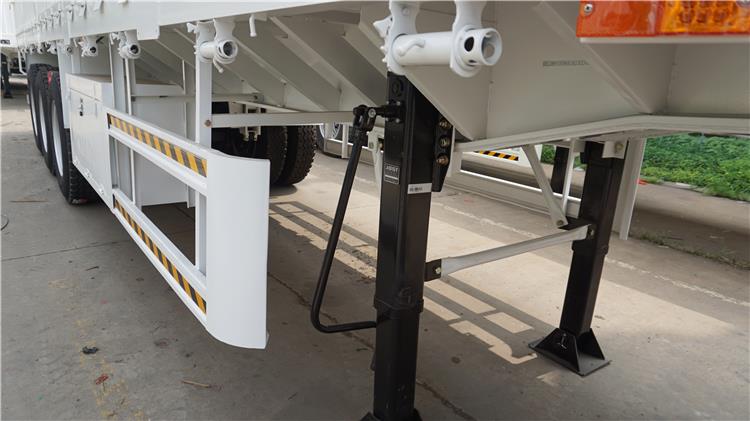

Livestock trailer in uganda lading gear adopts triangle reinforcement,which can effectively prevent the landing gear left and right tilt of outrigger and prolong its service life.

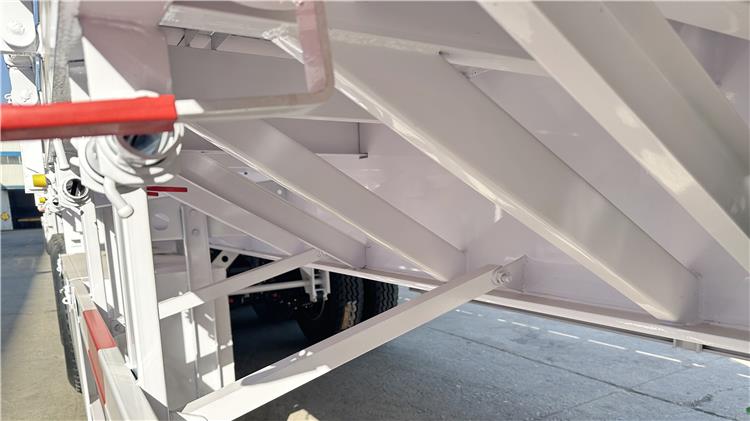

Sugar cane trailer in uganda uses high-density inclined support to support the trailer's beams,every beam has its own support.And the distance between every two inclined support is only 50 cm.

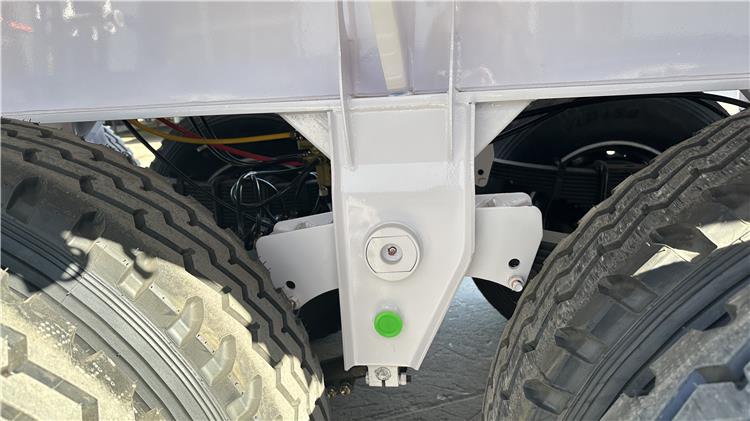

Livestock trailer in uganda heavy-duty mechanical suspension,whose thickness is 8 mm and the diameter of the kingpin is 70 mm.
Dimension(mm): 13000x2600x3420mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T, FUWA/ BPW/CIMC Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical Suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T
Platform: 3mm-thick checkered plate
