The TITAN flatbed semi trailer has been meticulously refined to balance carrying capacity and practical operational requirements, ensuring excellent reliability and adaptability in various transportation environments and providing customers with a stable, safe and efficient transportation experience.
In order to ensure that the flatbed semi trailer meets the factory standards before being put into use, TITAN will conduct strict load tests on each 3 axle flatbed trailer. During the test, the load is gradually increased and the negative pressure at different positions of the flatbed is adjusted to test the load-bearing capacity and structural stability of the 40 ft flatbed trailer for sale in static and transport states. The 40 ft flatbed trailer for sale can carry a maximum of 60 tons of weight, and can maintain good stability and is not easy to deform or unbalance whether is driving or unloading.
Flatbed Semi Trailer | 40 Ft 3 Axle Flatbed Trailer for Sale in Uganda Entebbe
Flatbed Semi Trailer | 40 Ft 3 Axle Flatbed Trailer for Sale in Uganda Entebbe
Overall Dimension: 12500mm*2500mm*1580mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high
Trailer Feature: front board
Tire: 12 units, 315/80R22.5

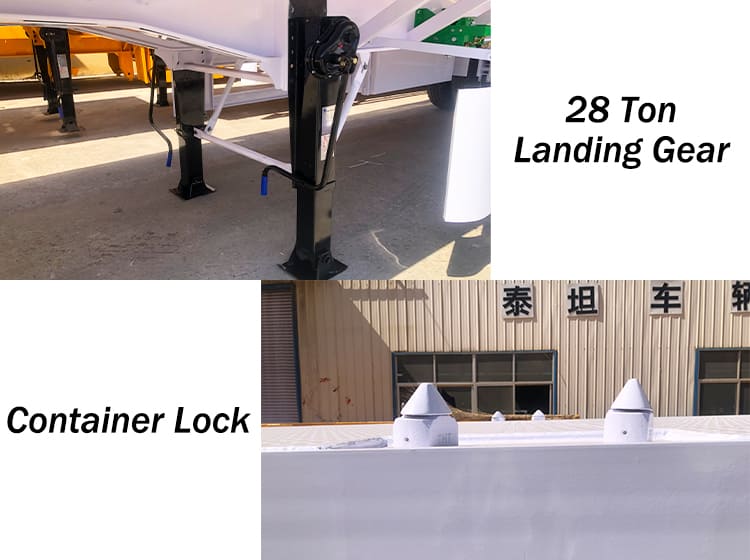

Landing Gear: JOST brand, 28 ton
Axles: 3 axles, 13ton

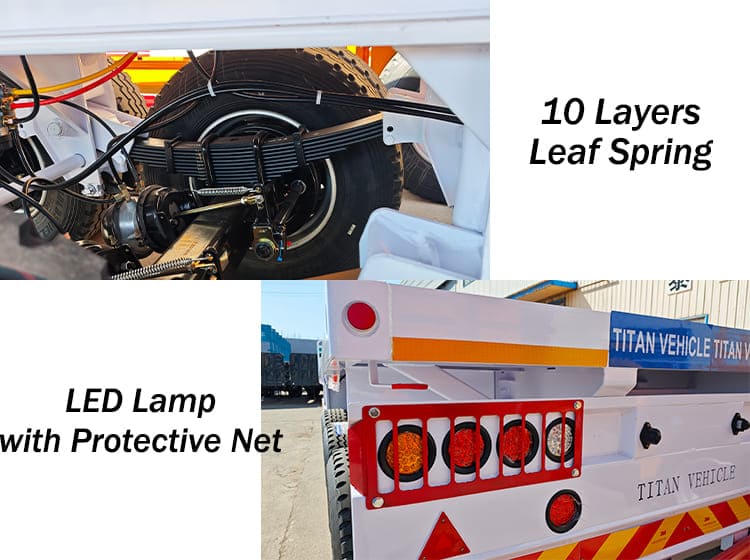

Leaf Spring: 10 layers

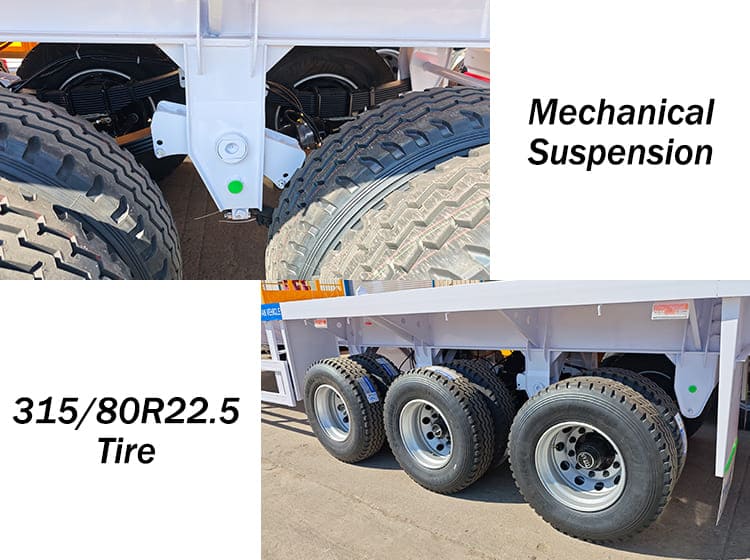

Suspension: mechanical suspension
Bumper: 4mm thick
Lamp: LED Lamp with protective net
During transportation, the rope tighteners equipped on both sides of the flatbed semi trailer play an important role. The rope tightener has a simple design and is easy to operate can effectively fix the cargo and prevent from moving or sliding due to sharp turns or emergency braking during transportation.
The 3 axle flatbed trailer not only improves the stability of cargo transportation, but also reduces the complexity of manual operation and improves work efficiency.
The design of the 40 ft flatbed trailer for sale floor plate focuses on both neat appearance and practicality and load-bearing capacity. The use of patterned plates as floor materials not only enhances the anti-slip performance, but also improves safety in use.
Unlike the 2mm thick base plate commonly used in the market, the TITAN flatbed semi trailer uses a 3mm thick material, which is more durable, has stronger load-bearing capacity and impact resistance, and extends the overall service life of the 3 axle flatbed trailer.
In terms of surface treatment, the 3 axle flatbed trailer uses powder spray and baking painting technology. The process makes the coating more adherent, bright in color, and has good UV resistance and fading resistance. Compared with traditional paint, the spraying method is more durable and can remain difficult to fall off for five years under normal use, thereby reducing the cost of frequent maintenance. In addition, TITAN supports customized services. Uganda customers can choose spray colors and print LOGO according to own brand needs to enhance product recognition and brand image.
To enhance impact resistance, the flatbed semi trailer is also equipped with a 4mm thick bumper. The component is also treated with powder spray and baking painting, which can effectively prevent corrosion and delay the rusting process in wet or dry environments. When a collision occurs, the thickened bumper can effectively buffer the impact force, reduce the risk of damage to the 3 axle flatbed trailer body itself and the cargo carried, and improve overall safety protection.
For customers in areas with complex road conditions such as Uganda, the traction performance of the 40 ft flatbed trailer for sale is particularly important. The flatbed semi trailer traction plate is closely connected to the front of the truck and is a key part of power transmission.
TITAN uses a whole piece of steel plate to manufacture the traction plate with a thickness of 12mm, which not only provides stronger hardness to prevent falling off, but also enhances flexibility and smoothness when turning. When facing rugged roads or bad weather, the traction plate can still stably transmit traction, and at the same time has a certain buffering capacity to effectively cope with the impact load during transportation.
To prevent rusting during transport, waterproof protection is applied to the 40 ft flatbed trailer for sale before delivery. TITAN sprays a protective wax coating on the surface and covers the entire 3 axle flatbed trailer with waterproof rain covers. The precautions help shield the flatbed semi trailer from corrosion caused by exposure to sea air and seawater during shipping, ensuring the flatbed semi trailer arrives in good condition.
