Low bed trailers are usually used to transport taller goods such as construction materials, machinery and large containers. Because the bottom of the low bed semi trailer is low, you need to pay special attention to the height limit of the vehicle when passing bridges and tunnels.
Hydraulic low bed trailer manufacturers is a special type of semi-trailer whose flatbed compartment is lower than that of a common semi-trailer, allowing for easy loading and unloading of goods. 3 Axle low bed trailer are usually used to transport heavy cargo such as lumber, construction materials, steel, etc. Their load capacity can reach tens of tons, while the length of their carriages can reach tens of meters.
3 Axle low bed trailer uses the Q460C high strengthen steel to produce the trailer. The yield strength of Q460C steel is ≥620Mpa, more durable and stronger and its loading capacity more strong
Low bed semi trailer inclined support corresponds to the middle connection one by one, this design can effectively prevent the deformation of the beam.
The hydraulic low bed trailer manufacturer's entire side beam section above the tires is reinforced with double steel plates.

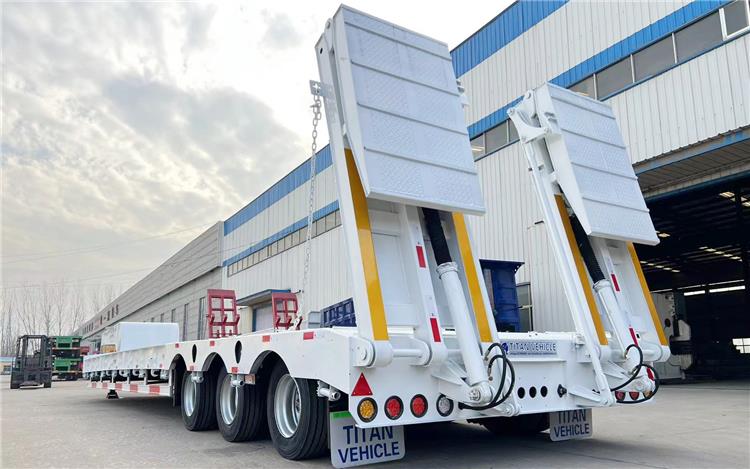

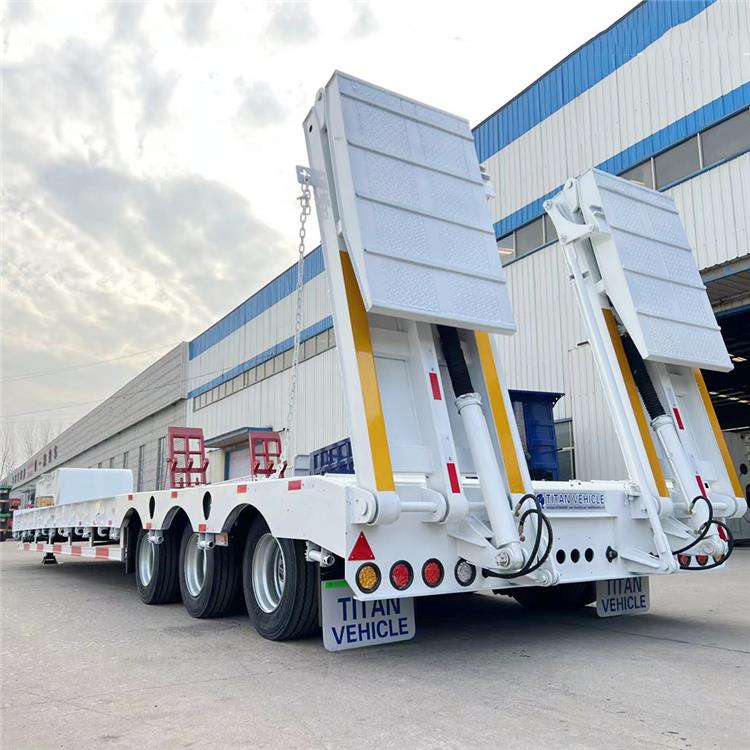

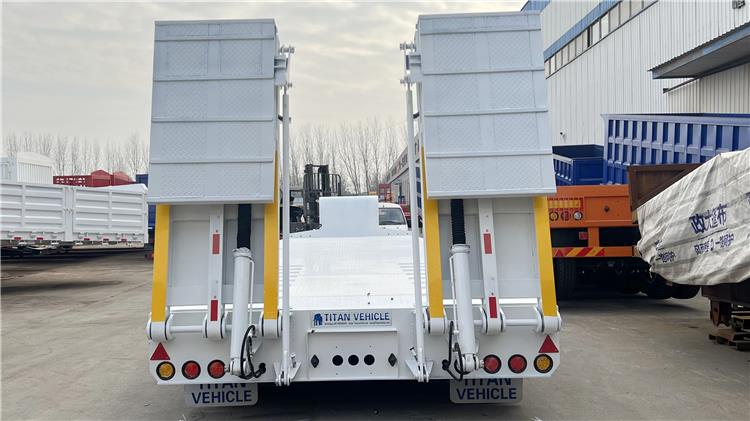

The ramp of low bed semi trailer has double folding ramp,whose operation is simple, is welded by 4 pcs high strength steel.

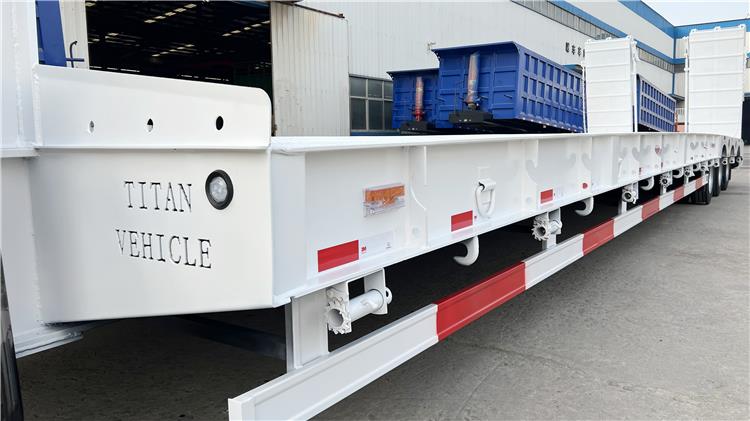

Hydraulic low bed trailer manufacturers side beam adopts an "H" shape design and is welded with T700 high-strength steel, which perfectly matches the frame.

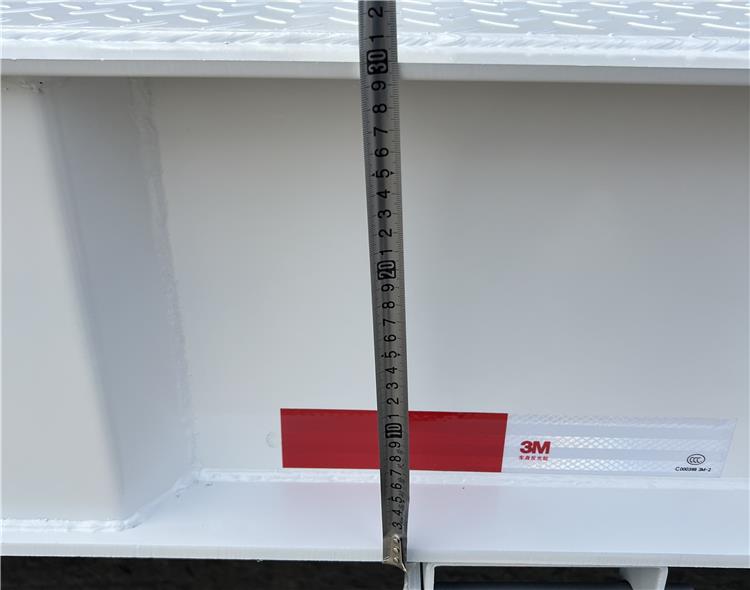

This is the side beam of our 3 axle low bed trailer,the thickness of the upper,middle and bottom plate are 10 mm,8 mm and 10 mm.
Overall dimension: 16000mm * 3000mm *1710mm
Loading capacity(T): 100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Ramp Type: Folding ramp
